Case Study 2

Case Study: TDM Tie Down Bracket

Product development through Prototype Validation.

Prototype Tool: Generic prototype die sets with custom riser plates available in house to stamp prototype parts in short turnaround time

Product Concept→Prototype Build→Prototype Validation→Optimized Product→Full Production Tooling
  • Material Savings thru Engineering (Getting Washer out of Scrap — part produced from skeleton)
  • Close collaboration with customer upstream led to cost savings in Tooling and Saved Piece price
  • Lesson Learnt from Prototype tooling applied to Production Tooling

Program Photos

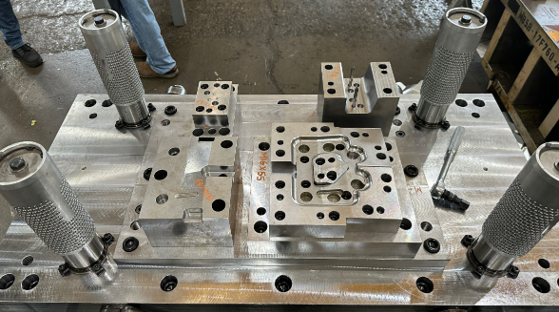

Die Component

Tie Down Bracket

Parts

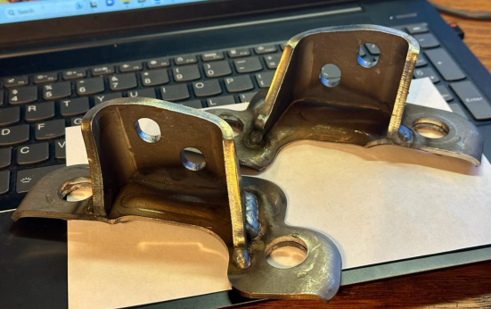

Bracket Form

Parts

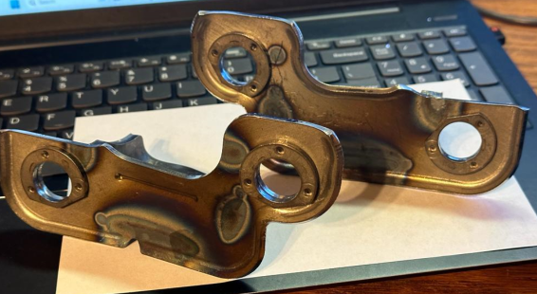

Part Detail

Parts

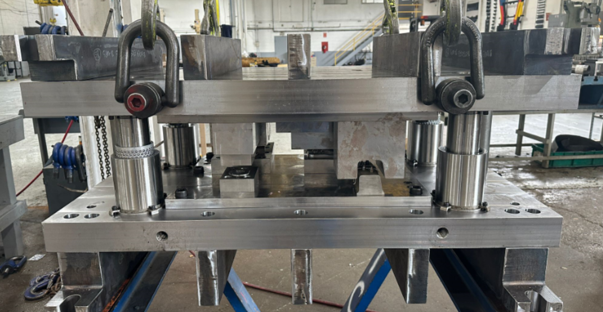

Tool Assembly

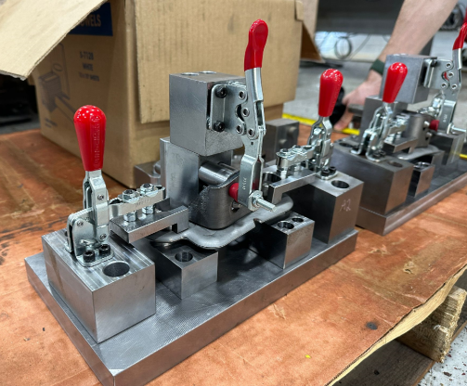

Check Fixture

Check Fixture

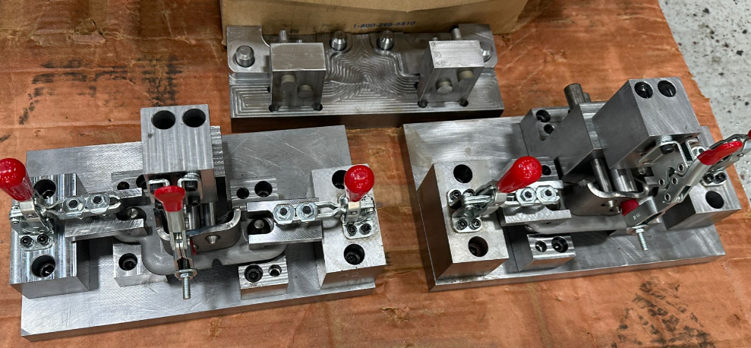

Fixture Setup

Weld Fixture

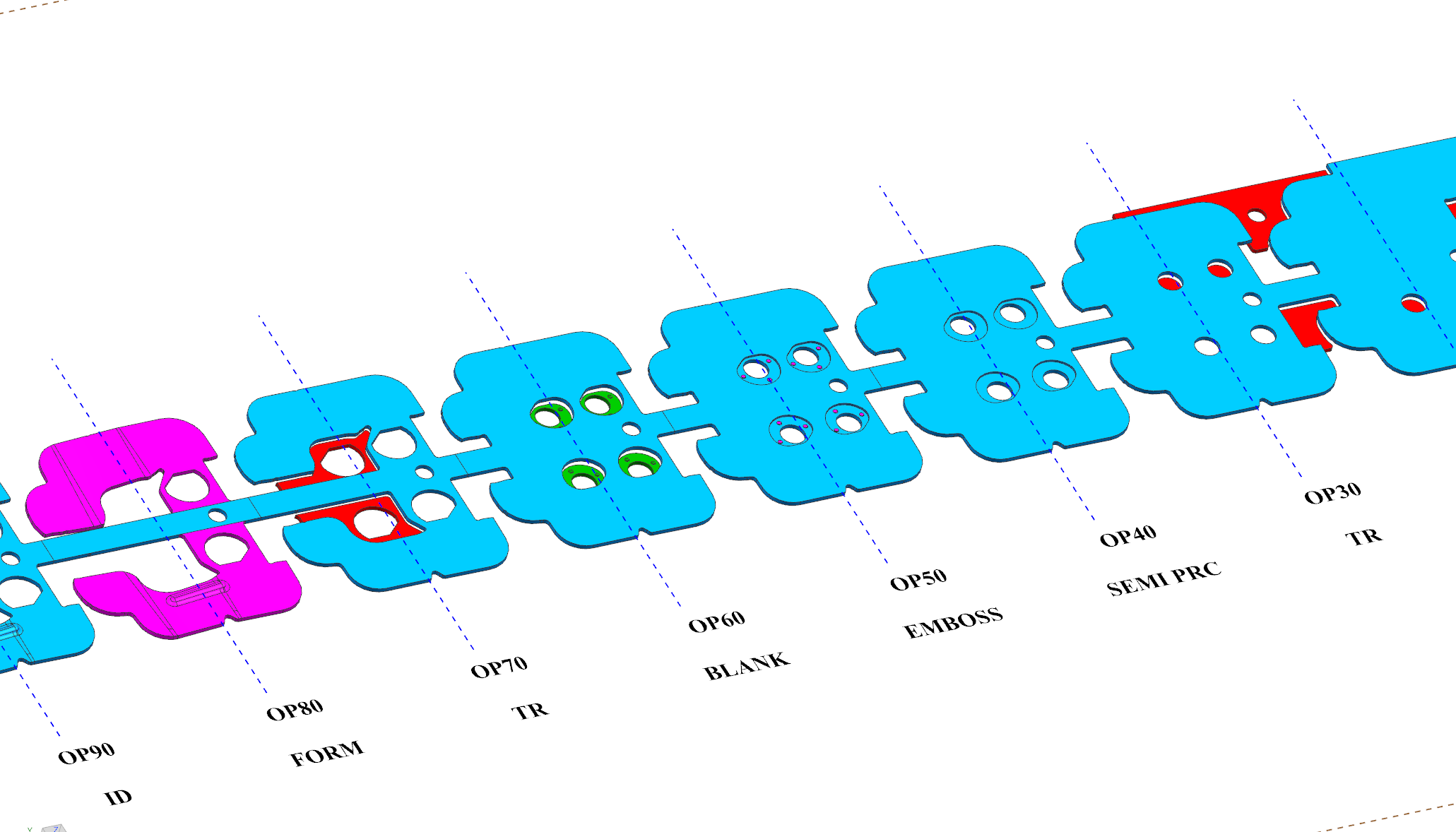

Strip Layout

Strip Layout

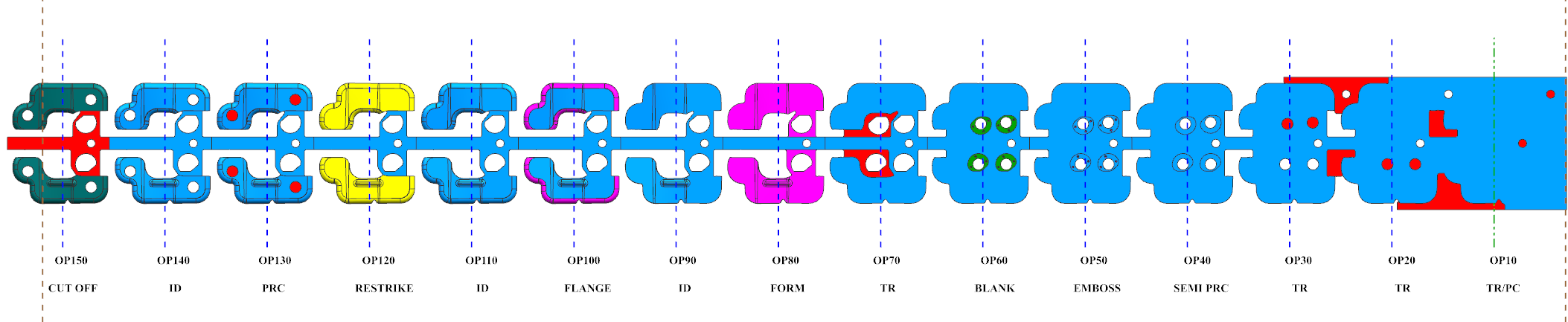

CAD Layout
