Case Study 05
1st Row Next Gen Seating
Complex 1st-row seating components delivered using large stamping dies — designed, built, validated, and bought off for OEM production launch.
3 Parts
Program Scope
Large Dies
Casting Dies Used
Validated
& Bought Off
OEM
Launch Ready
Program Overview
ETCS delivered complex 1st-row seating components using large stamping dies designed for challenging part geometry. The program covered three key structural seating parts — Upper Cross Member, Lower Cross Member, and Side Members — each requiring purpose-built progressive stamping dies, precision checking fixtures, and full dimensional validation.
The parts were successfully stamped, validated against checking fixtures, and bought off for the OEM, supporting production readiness and program launch.
What ETCS Delivered
- Stamping die design & build
- Checking fixture design & build
- Progressive die try-out & validation
- Dimensional buy-off to OEM specs
- Upper & Lower Cross Members
- Ford Brose Side Members (LH & RH)
1
Upper Cross Member Part

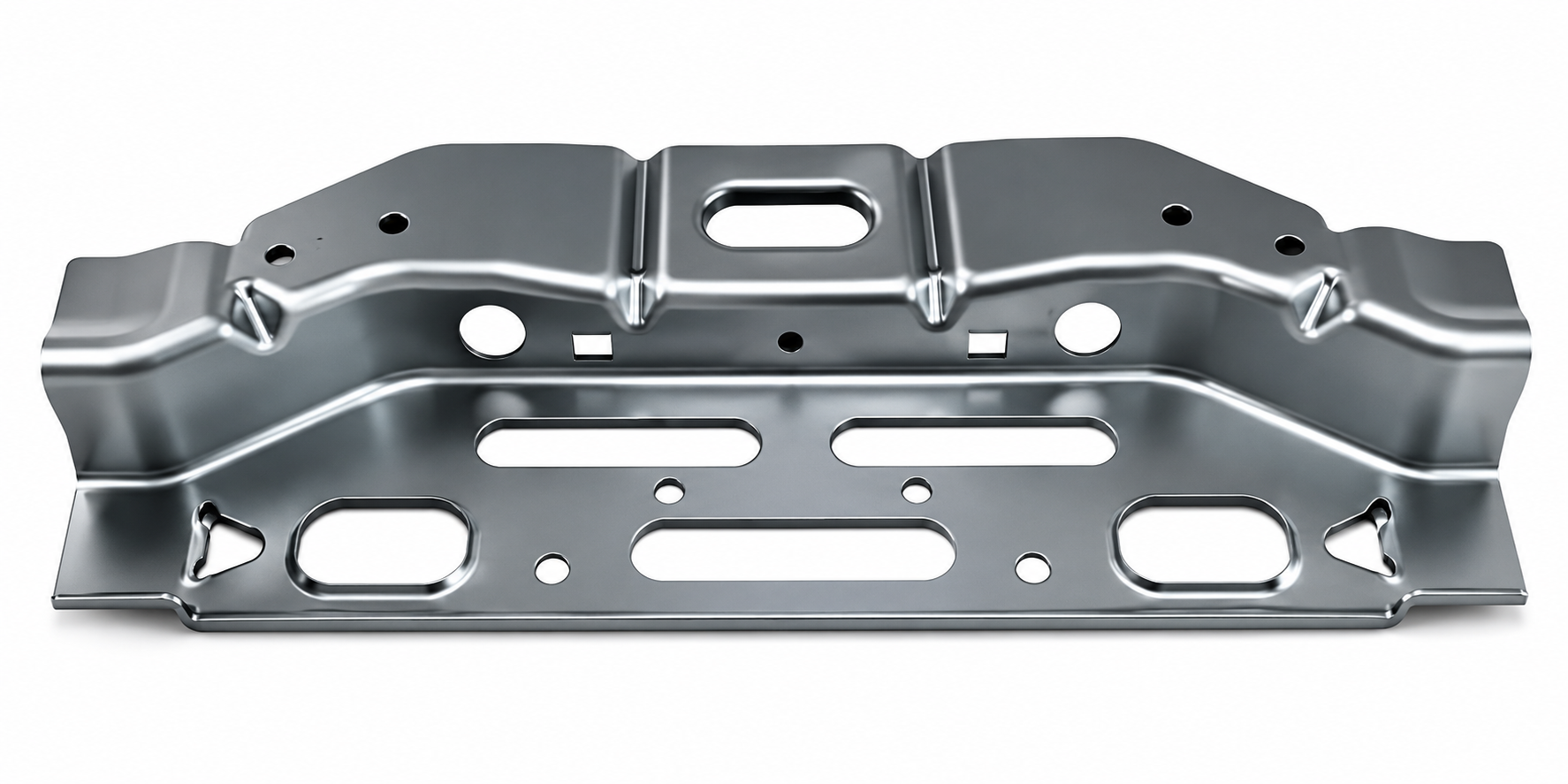

1st Row Next Gen Seating – Upper Cross Member Part

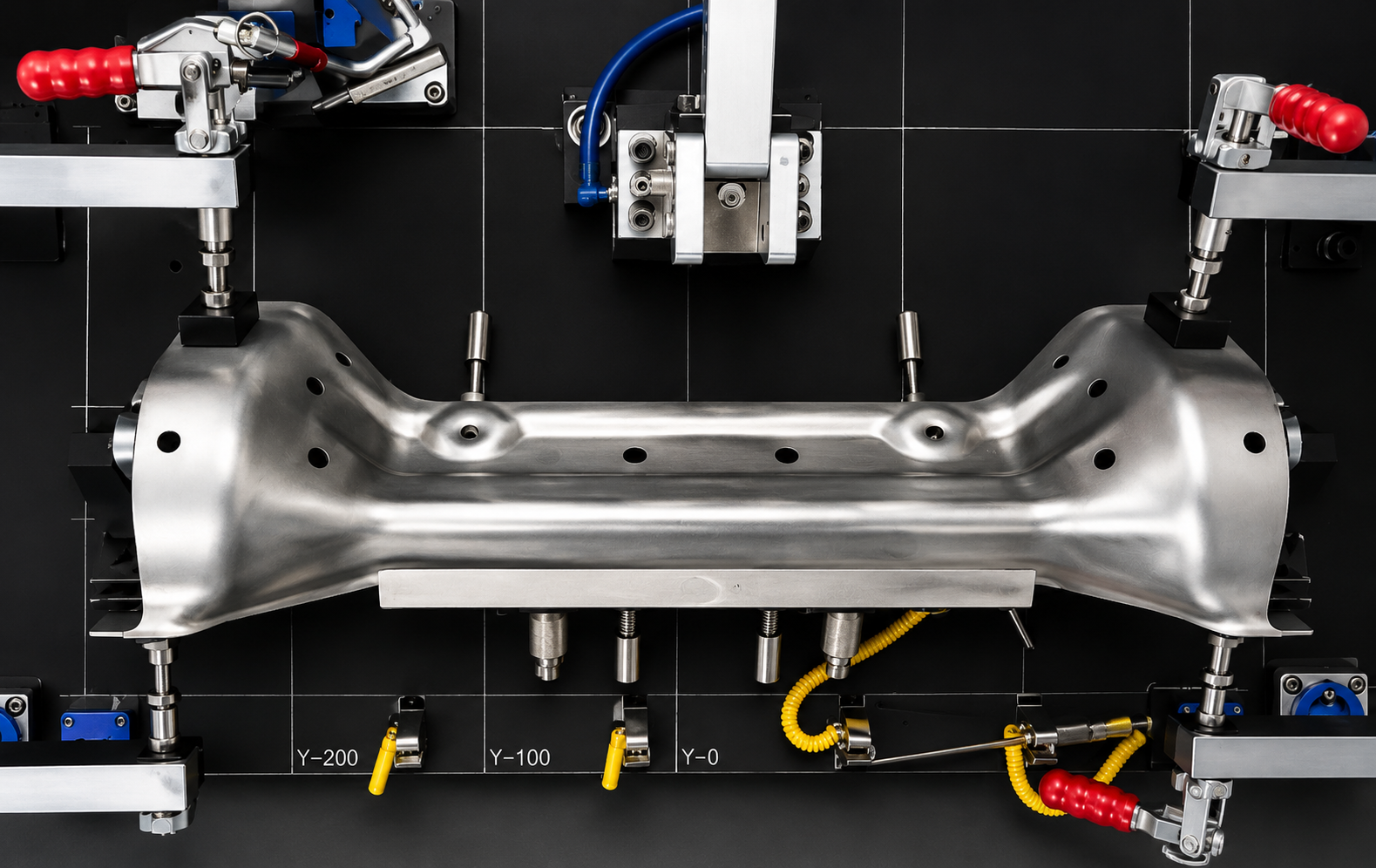

Checking Fixture

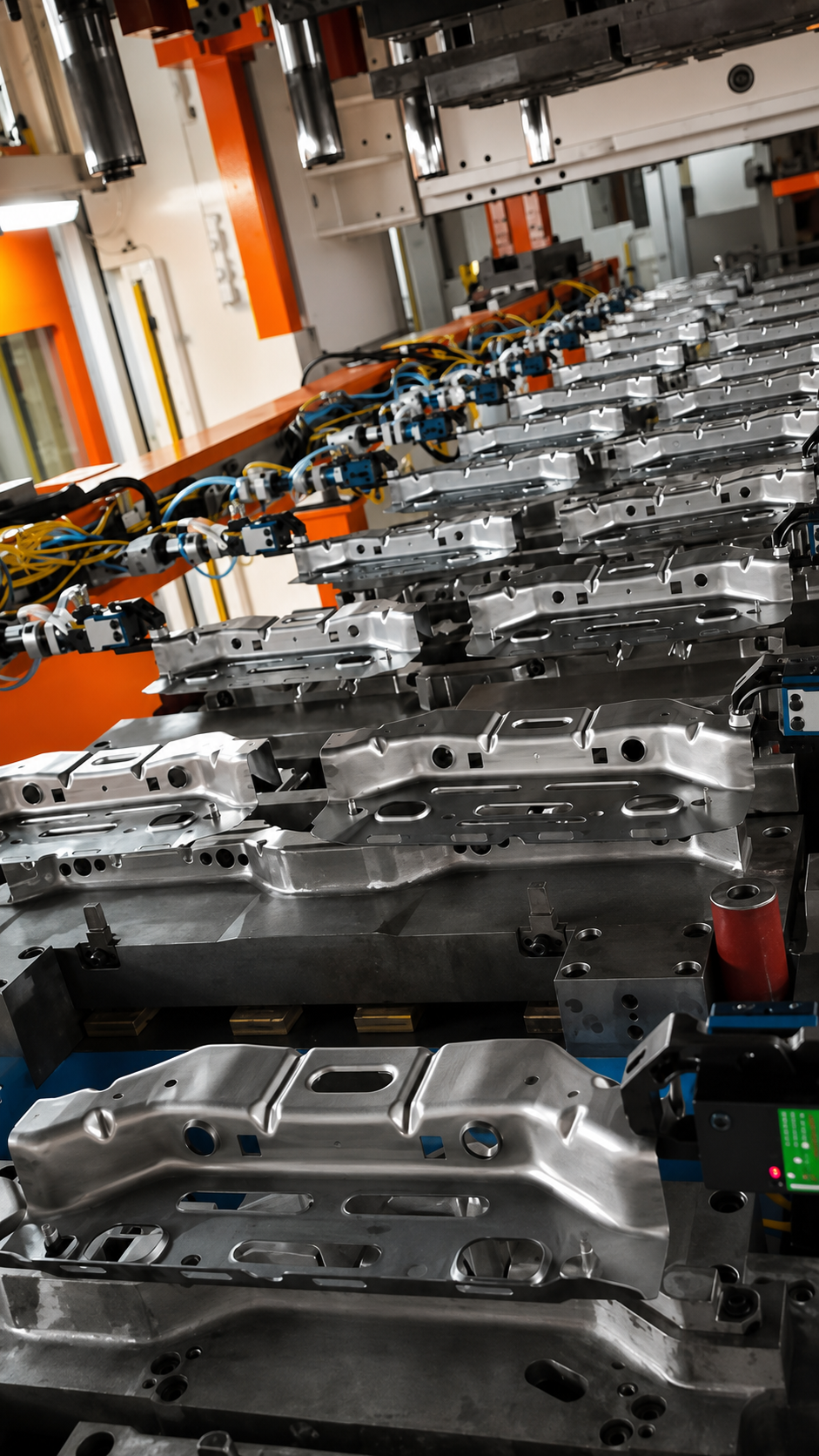

Stamping Die in Press
Seating Assembly
2
Lower Cross Member Part

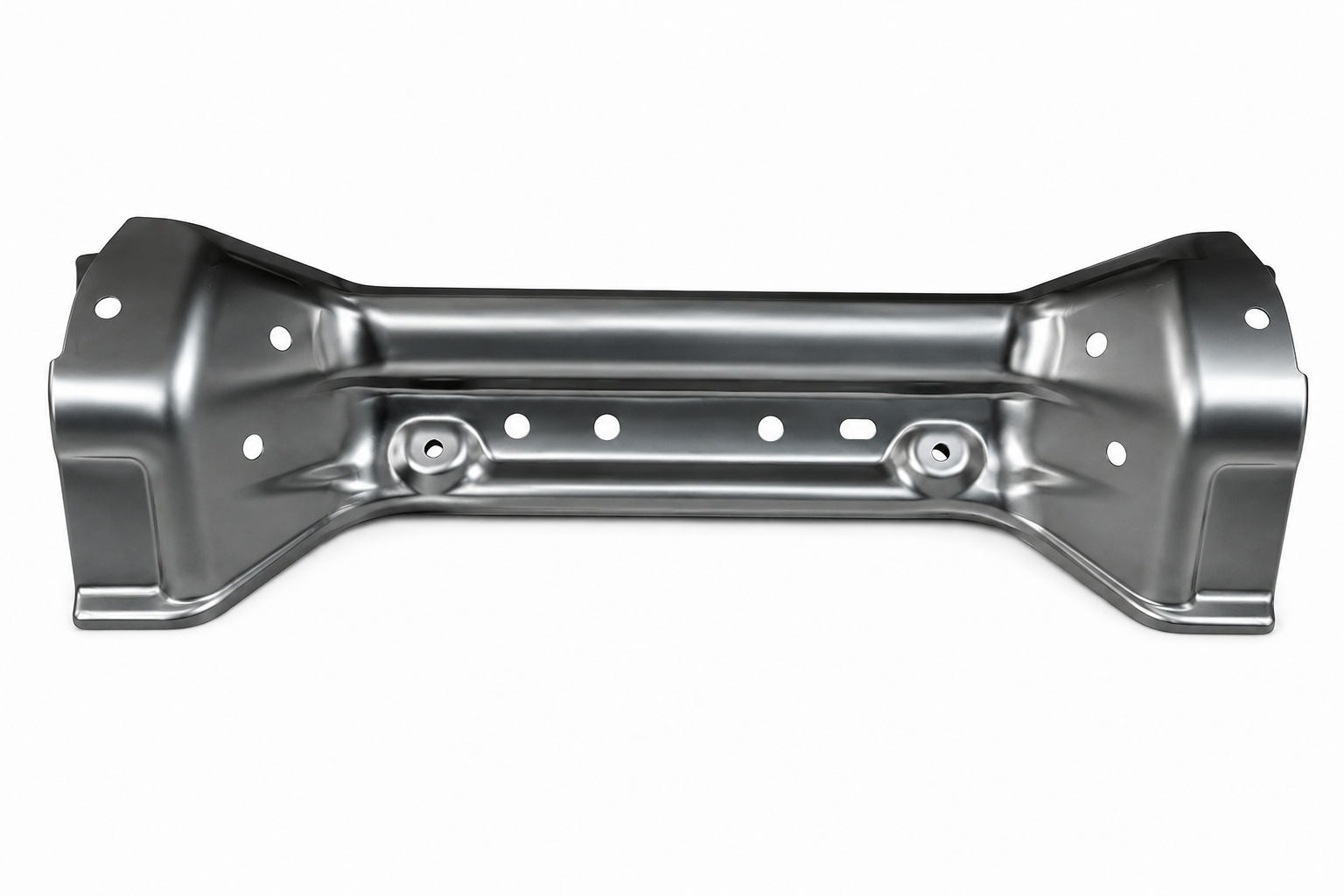

1st Row Next Gen Seating – Lower Cross Member Part

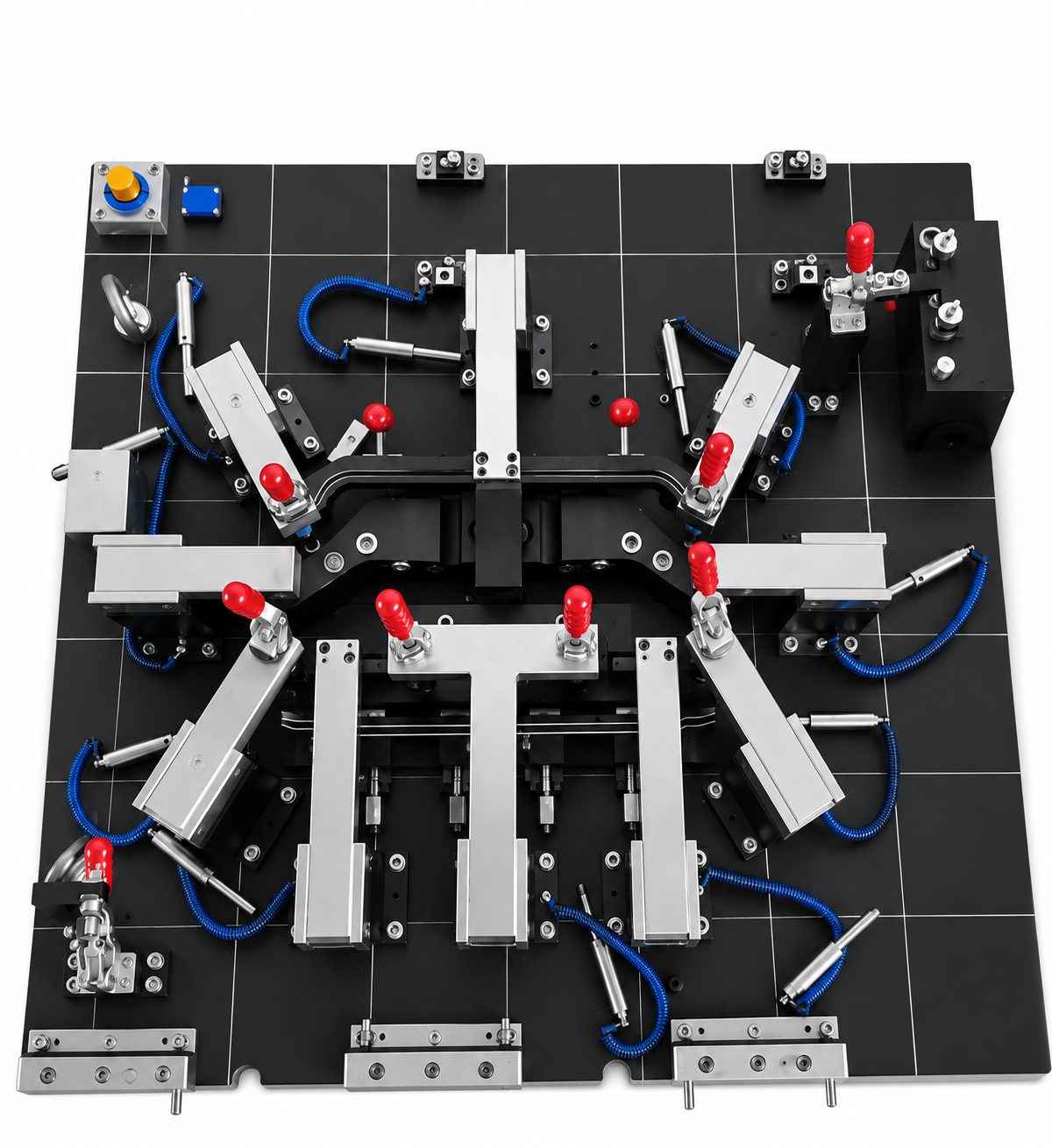

Checking Fixture

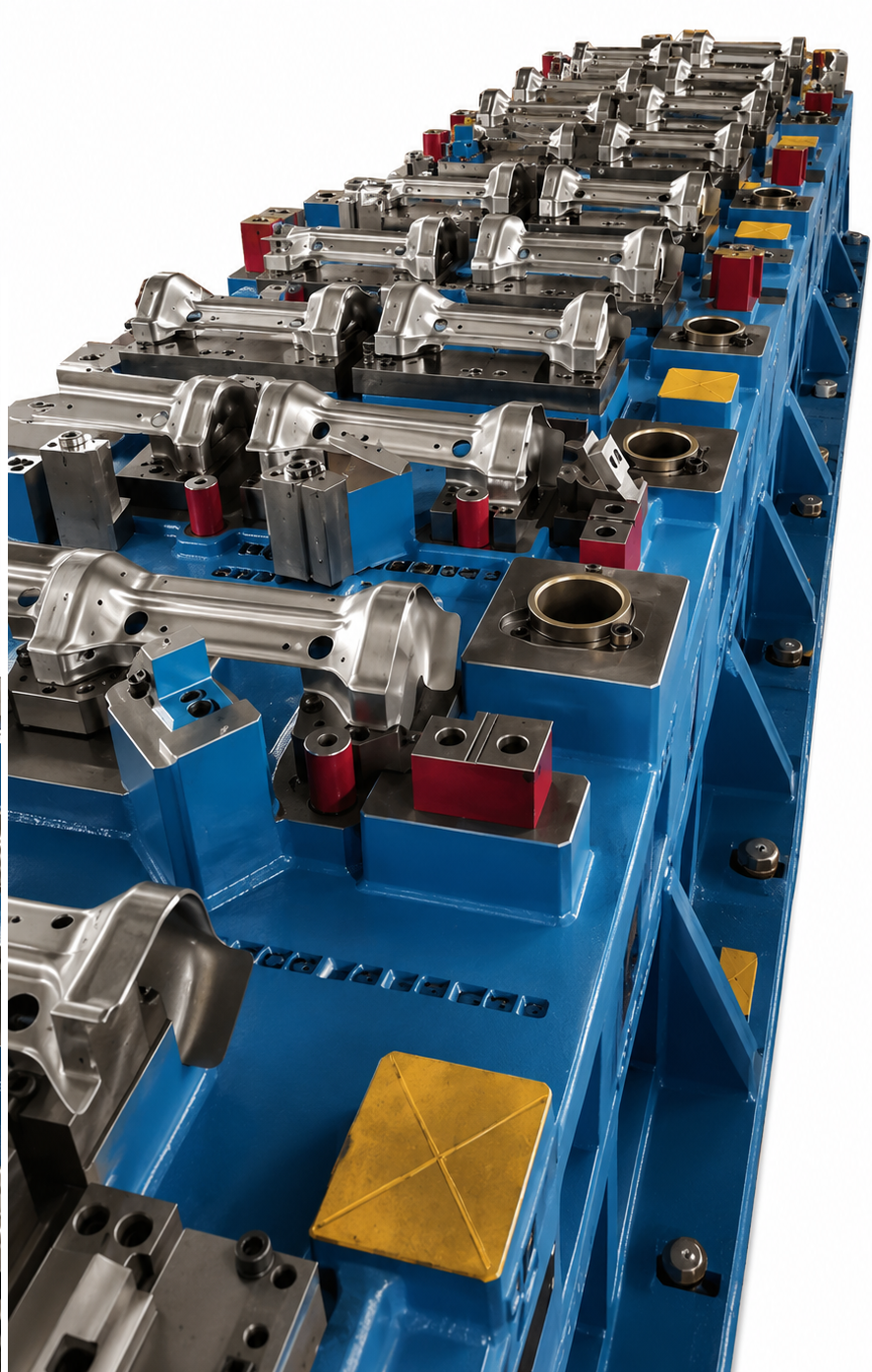

Stamping Die
Seating Assembly
3
Side Member Part

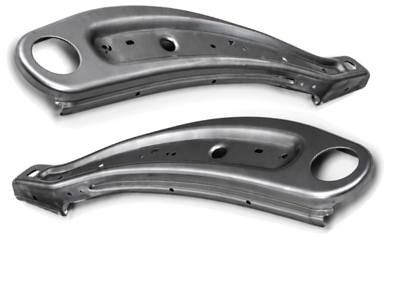

1st Row Next Gen Seating – Side Member Part

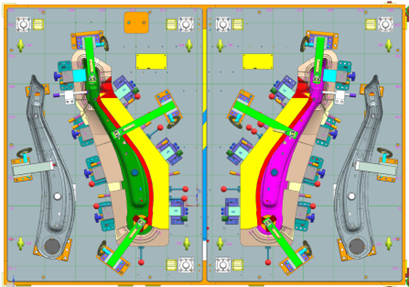

Checking Fixture

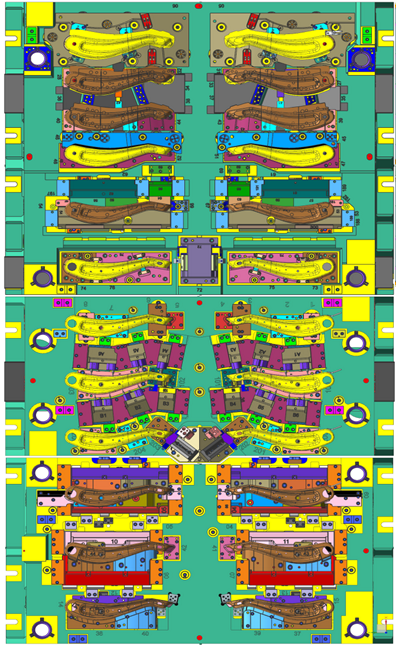

Stamping Die
Seating Assembly
